Details

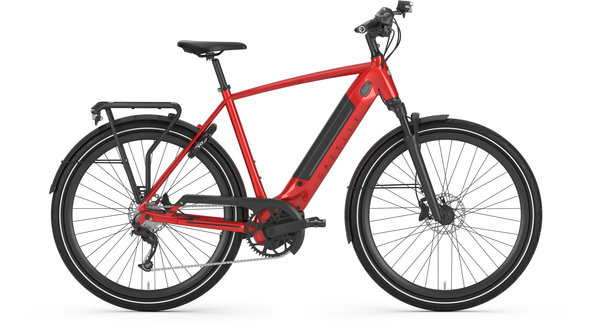

Arrive at work fast and relaxed with the Ultimate T10+ HMB. A dynamic contemporary design combined with the integrated motor and battery gives the Gazelle Ultimate T10+ HMB a striking yet stylish presence. The aluminum frame is exceedingly stable, which translates into sporty handling and optimum agility. In addition to high-grade components, a high comfort level has been achieved by using puncture-resistant tires, ergonomic handlebar grips, and a suspension front fork.
Sporty design meets comfort
Available in both high and mid-step options, the streamlined, racy frame is complemented by a bump-absorbing Suntour Mobie 45 suspension front fork with 80mm of travel.
Integrated Bosch battery
The integrated in-tube design offers a sleek and modern look, and the high-capacity 500Wh battery provides an extensive range.
Bosch Performance Line Speed Motor
The latest generation Bosch Performance Line Speed motor creates a smooth ride with powerful assistance (85Nm of torque) for fast, effortless cycling.
- Comfortable yet sporty cycling with powerful assistance up to 28 mph
- High comfort level on poor road surfaces thanks to the outstanding suspension front fork
- Relaxed posture combined with powerful performance means that no trip is too far
- Design, integration, and comfort: the Ultimate T10 Speed has it all
Height (rider) | Frame Size |
---|---|
4'10" - 5'6" | Small (46) |
5'6"- 5'10" | Medium (53) |
5'10" - 6'3" | Large (57) |
Specs
Fork | Alloy Telescoping Suntour Fork 45-AIR 100mm tapered |
---|---|
Rear Shock | No |
Rims | Ryde Dutch 19 28 inch |
Hubs | Shimano Deore 10 speed |
Spokes | Stainless Steel |
Axles | Shimano |
Tires | Swalbe Enegizer Plus 47 - 622 |
Crankset | Miranda Delta |
Shifters | Shimano BL-MT520 |
Front Derailleur | No |
Rear Derailleur | Shimano Deore |
Cassette/Freewheel | 48 / 11-36 |
Chain | KMC 10sp eBike |
Brakes | Shimano Deore Hydraulic Disc |
Brake Levers | Shimano Deore Hydraulic Disc |
Handlebars | Active |
Tape/Grips | Ergon Ergonomic |
Stem | Steplessly Adjustable |
Seatpost | Alloy |
Saddle | Selle Royal Essenza |
Pedals | Gazelle Pedal |
Accessories & Extras | Front (50 lumen) & Rear Lights, Gazelle Bell |
Motor | Bosch Performance Line Speed (85MNm) Gen. 4.0 |
Battery | Bosch Integrated 500Wh |
Controller/Display | Bosch Purion |
Charger | 4 amp |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Champion Red Gloss / 53cm | 08717231352786 | G2420 | 8972 |
